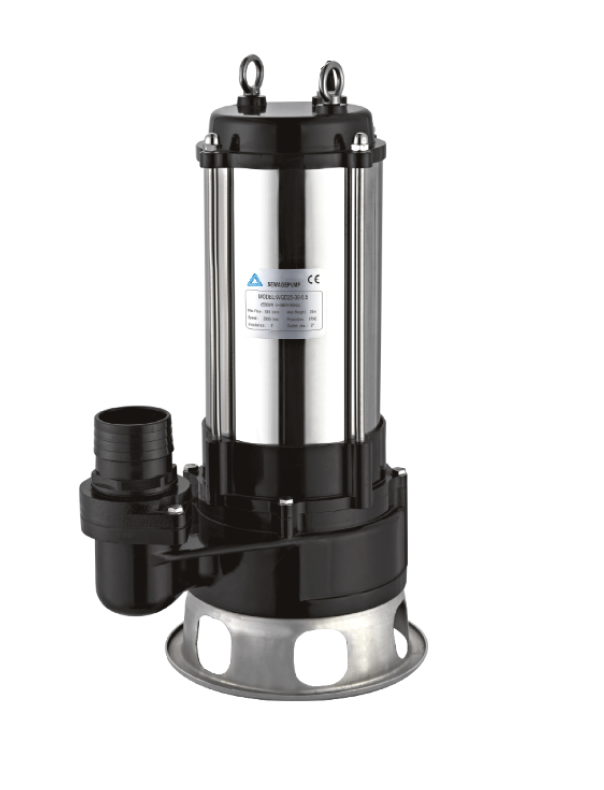

NQ Series
NQ23-15-2.2. NQ30-10-2.2 NQ23-20-3 NQ30-15-3. NQ25-22-4 NQ40-18-4 NQ25-30-5.5 NQ40-22-5.5

■ Max:Immersion Depth:Sm

■ Max:Liquid Temperature:+40t:

■ Liquid PH Value:5-9

■ Max.liquid Density:1.2x10 Kg/M


overview
  • features
  • technical data
  • order

    Application

    • Wastewater Drainage In Factories.construction Sites And Commercial Facilities

    • Drainage System In Municipal Sewage Treatment Plants

    • Drainage Station In Residential Quarters

    • Municipal Projects

    • Methane Pools And Field Irrigation In Countryside


    • Max:Immersion Depth:Sm

    • Max:Liquid Temperature:+40t:

    • Liquid PH Value:5-9

    • Max.liquid Density:1.2x10 Kg/M



    Motor

    • Copper Winding

    • Built-In Thermal Protector

    • Stainless Steel Welded Shaft

    • Insulation Class: B

    • Protection Class:IPX8
